The ABCs of Overcurrent Coordination FEEDER PROTECTION PHILOSOPHY Step 1 Identify TCC Landmarks Ampacity located in the upper decade Intermediate Overload Curve located in the upper 2 decades typically not shown Short Circuit Damage Curve located in the bottom 3 decades Step 2 Identify TCC Areas. As will be seen later in this chapter prote ction and coordination are often in direct opposition with each ot her.

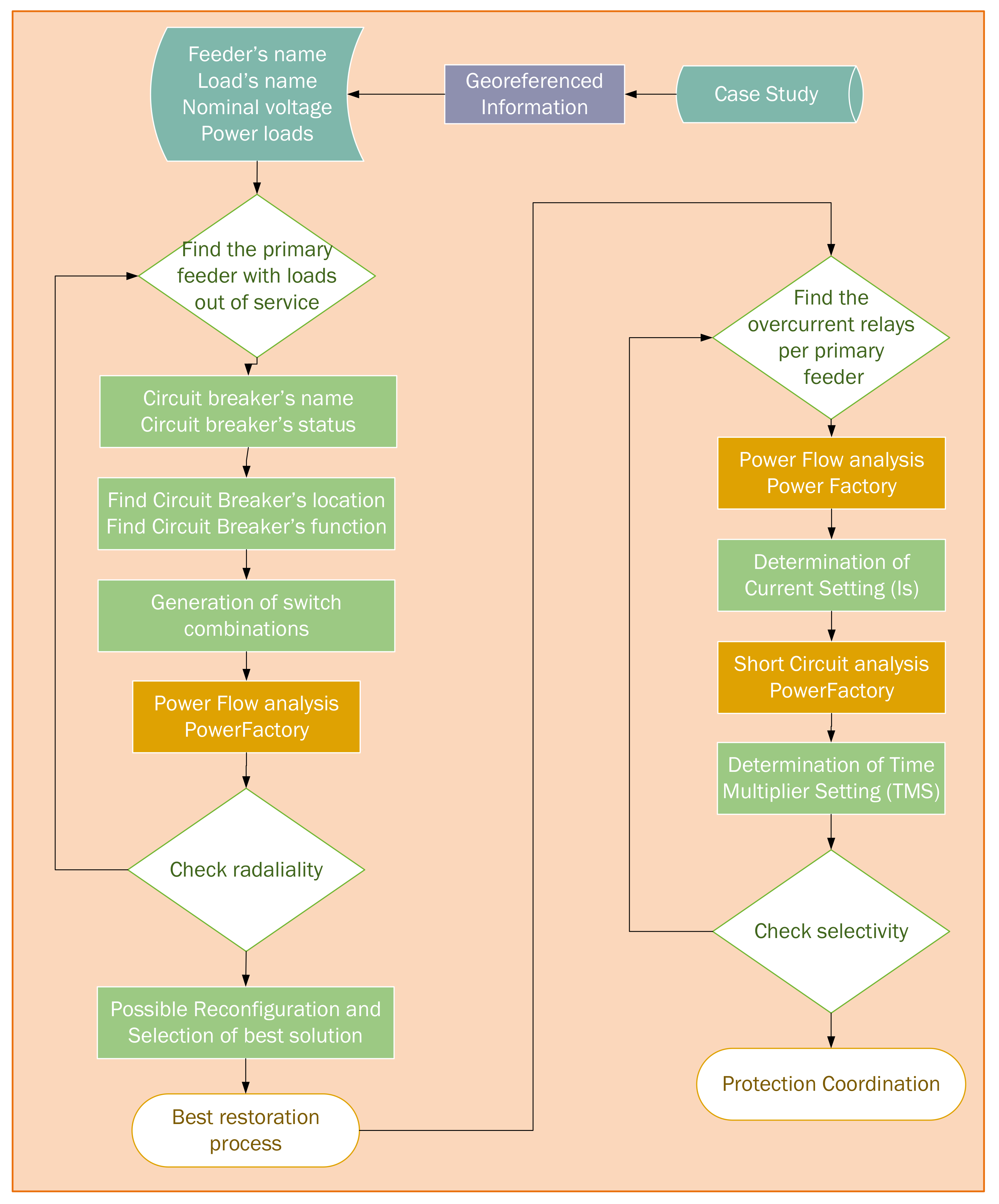

Energies Free Full Text Automatic Overcurrent Protection Coordination After Distribution Network Reconfiguration Based On Peer To Peer Communication Html

Protection device upstream 51 e-m relay downstream 51 e-m relay static relay 2 1 51 52 51 52 isc isc 0400 s 05 1 10 100 001 010 1 10 100 current in amperes time in seconds 1 2 0400 s 1 2 fig.

The abc of overcurrent coordination pdf. This paper presents short circuit analysis and relay coordination between overcurrent relays of a 1323311kV substation which located in Upper Egypt and is performed by ETAP 126 simulation program. Zayandehroodi H Mohamed A Shareef H Farhoodnea M. The current setting multipliers of overcurrent relays generally range from 50 to 200 in steps of 25 which is referred to as plug setting PS.

Make sure that the relay farthest from the source has current settings equal to or less than the relays. Plug setting for each relay is determined by the fault current. Protection may have to be sacrificed for coordination and.

This will lead to loss of life not instantaneous failure. In addition the NEC mandates selectively coordinated OCPDs for circuits that supply power to vital loads in specific building system applications. The abcs of overcurrent coordination selectivity problem 1 applicable combinations include.

During heavy fault currents when the relay detects severe CT saturation the overcurrent elements can operate on the adaptive current algorithm. Overcurrent Coordination Page 4 Qual-Tech Engineers Inc. The relay operates as soon as the current gets higher than a preset value.

The SEL-551SEL-551C phase instantaneous overcur- rent elements normally operate by using the output of a cosine filter algorithm. View 1 excerpt cites background Overcurrent Protection Philosophy Using Microprocessor Based Relays For a South African Power Distribution Network. The ABCs of Overcurrent Coordination Table of Contents Section 1 INTRODUCTION 1 Section 2 LIFE SAFETY REQUIREMENTS 2 Section 3 EQUIPMENT PROTECTION REQUIREMENTS 3 Feeders 3 Capacitors 11 Transformers 15 Motors 23 Generators 31 LV Equipment 36 MV Equipment 40 Section 4 SELECTIVITY REQUIREMENTS 44 Section 5.

When the above ob jectives are fulfilled maximum protection to equ ipment production and personnel will be acco mplished. In Electrical Engineering in 1982 and his BS. Click here to load reader.

There is no intentional time delay set. Overcurrent in m inimum time and still be selective w ith other devices on the system. This point is commonly used when applying fuses.

AbstractThis paper presents the implementation of Artificial Bees Colony ABC algorithm in solving Directional OverCurrent Relays DOCRs coordination probl em. Viewing 1 post of 1 total Author Posts December 18 2019 at 1000 am 98189 sseiiusParticipant. Coordination Overcurrent pdf This topic has 0 replies 1 voice and was last updated 1 year 9 months ago by sseiius.

The ABCs of Overcurrent Coordination. Home Forums Transportation Talk Overcurrent coordination pdf Tagged. It is strongly recommended that the design engineer objectively review the results of the overcurrentcoordination study.

In Education in 1981 from the University of Nebraska. There is no substitute forexperience. Performing overcurrent coordination studies is a skill required of every electric power system engineerThis document is intended as a basic guide to overcurrent coordination.

The basic element in overcurrent protection is the overcurrent relays. Selectively coordinated overcurrent protective devices address localizing faulted conditions on the power distribution system and is quite often a reliability design goal. The ABCs of Overcurrent Coordination Thomas P.

There is always an inherent time delay of the order of a few milliseconds. View A_The_ABCs_of_Overcurrent_Coordinationpdf from FACULTY OF 0859215941 at Sultan Ageng Tirtayasa University. Analyzer Published for electrical engineers by.

20 51 relay upstream with 51 relay. Sign in to download full-size image Figure 53. 2006 epowerengineering 18 f the abcs of overcurrent coordination transformer protection philosophy step 1 identify tcc landmarks all based on the nominal kva rating full load amps located in the upper decade thermal damage curve located in the upper 3 decades.

Slide 2 Day 1 Day 2 Introduction Using Log-Log Paper TCCs Types of Fault Current Protective Devices Characteristic Curves Coordination Time Intervals CTIs Effect of Fault Current Variations. Overcurrent coordination pdf DOWNLOAD Overcurrent. Optimal coordination of overcurrent relays in distribution systems with distributed generators based on differential evolution algorithm.

Based on the level of a harmonic distortion index the. FThe ABCs of Overcurrent Coordination Feeder Intermediate Overload Limit Curve from 10 seconds to 1-6 hours Conductor overcurrent emergency operating limit that if exceeded will damage the insulation of an insulated power conductor. Smith has over 20 years of electric power systems design analysis and training experience.

January 2006 ABOUT THE AUTHOR THOMAS P. IEEE Continuing Education Seminar - Houston TX November 3-4 2015. This relay is referred as definite instantaneous overcurrent relay.

Download Report this document. European Transactions on Electrical Power. A novel neural network and backtracking based protection coordination scheme for distribution system with.

Overcurrent protection devices include circuit breakers and fuses. The relay setting is adjusted based on. Overcurrent protective devices or OCPDs are typically used in main service disconnects and in the feeders and branch circuits of electrical systems for residential commercial institutional and industrial premises Figure 53.

Ungrounded or high resistance grounded HRG systems alarm but do not trip for ground faults. Overcurrent Relay Coordination for Phase and Earth faults using ETAP Proceedings of 7 th IRF International Conference 27 April-2014 Pune India ISBN. Overcurrent Protection Coordination for Industrial Applications Doug Durand PE.

Enable the Overreach DC Filter set the Short Circuit Trip delay setting 10 ms and set the Short Circuit Trip instantaneous pickup setting 13 x locked rotor current.
